Cameras & imaging

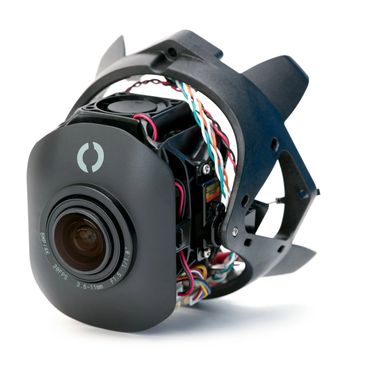

4K video (3840 × 2160) at up to 30 fps, with a Sony IMX678 sensor. Up to 2× optical zoom, remote focus and integrated tilt. 94° horizontal and 62° vertical field of view. Minimum illumination: 0.001 lux at F1.2. Underwater white balance with blue and green water presets.

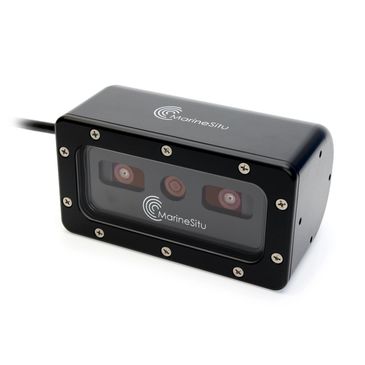

12 MP colour camera and two 1 MP monochrome stereo cameras with a 7.5 cm baseline for depth and scale measurement. Individually calibrated for underwater use. Camera housing rated to 1,000 m; our ROV operating limit remains 300 m. Typical live view on a standard BlueROV2 tether: 3 fps colour and 5 fps stereo.

1080p video (1920 × 1080) at up to 30 fps with H.264 or MJPEG. Sony Exmor CMOS sensor and USB connection for an additional live view. Approximately 82° horizontal field of view in water and a 20–30 cm minimum focus distance. Camera housing rated to 400 m; our ROV operating limit remains 300 m.

Maximum operating depth: 300 metres. Maximum speed: 1.5 m/s (3 knots). Newton Gripper for retrieving objects, attaching recovery lines and freeing a snagged tether.

Battery mode: 300 m and 150 m tether lengths. Outland Technology Topside PSU: 150 m tether.

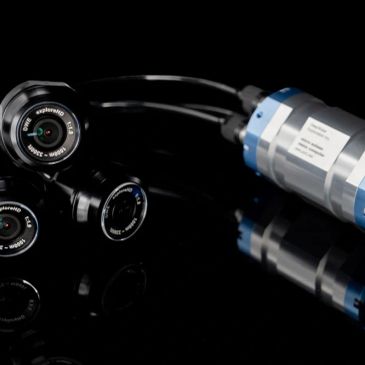

Ultra low light & DWE cameras. Four or six 1,500-lumen dimmable lights, each with a 135-degree beam angle.
